DevOps Architecture Patterns
CI/CD Platform That Deploys to 40+ Accounts
CodePipeline runs in a tooling account, assumes roles into dev/test/stage/prod, deploys CloudFormation stacks that create resources which then trigger post-deployment Lambdas.
Gauri Yadav

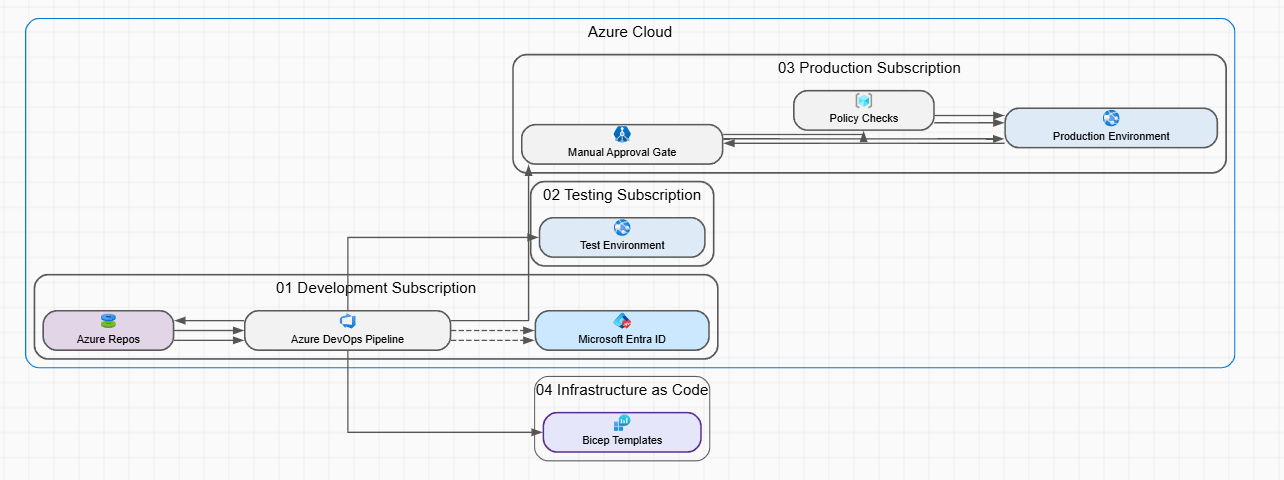

Azure DevOps CI/CD Pipeline with Multi-Subscription Deployments
This Azure DevOps-driven CI/CD architecture enables secure, repeatable deployments across multiple Azure subscriptions with identity boundaries.
Gauri Yadav

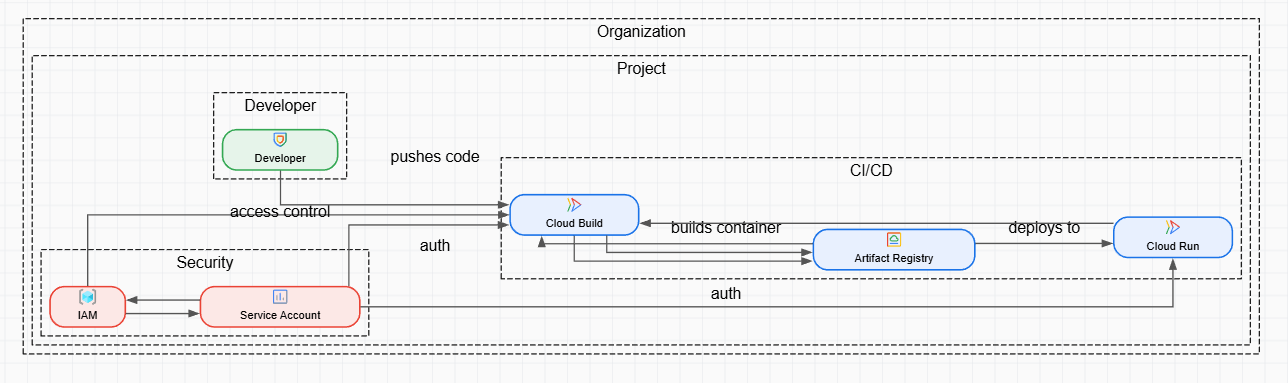

Simple CI/CD with Cloud Build
Developer pushes code → Cloud Build builds container → pushes to Artifact Registry → deploys to Cloud Run. Complete automation pipeline.
Gauri Yadav

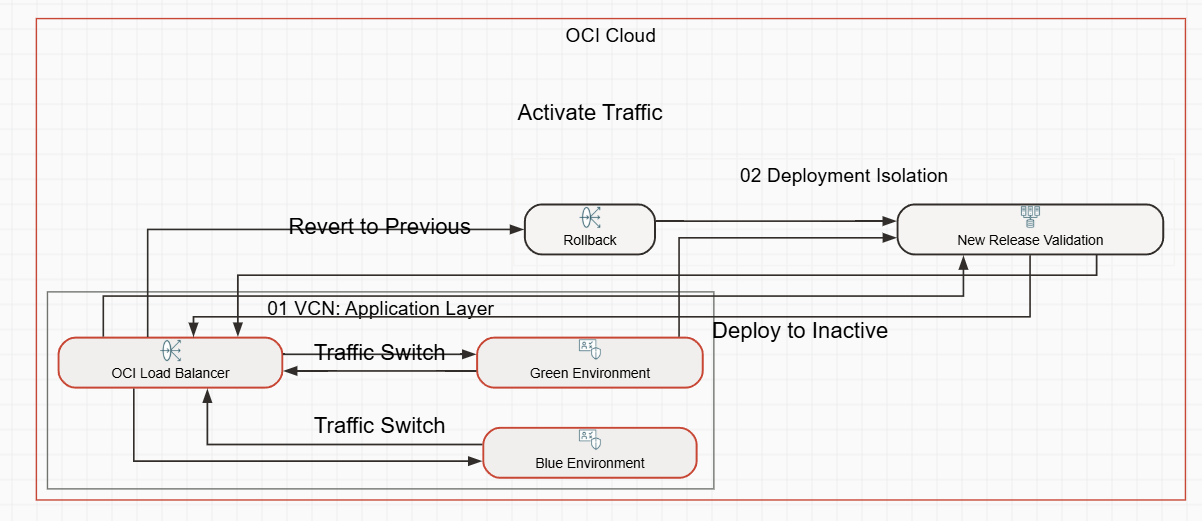

Blue-Green Deployment Using OCI Load Balancer
Production application runs two identical environments, with OCI Load Balancer routing traffic to one at a time using backend set switching.
Gauri Yadav

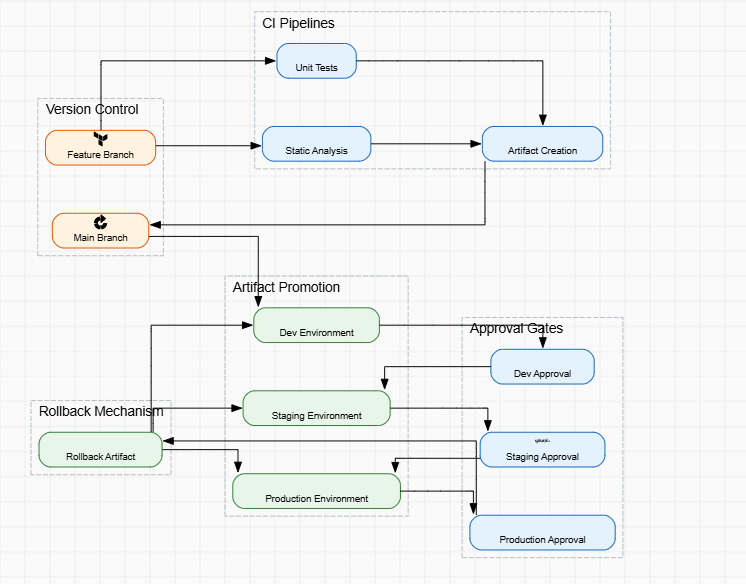

Multi-Branch CI/CD with Environment Promotion
An organization follows a Git-based workflow where feature branches trigger CI pipelines for unit tests and static analysis, while merges into the main branch trigger artifact creation.
Gauri Yadav

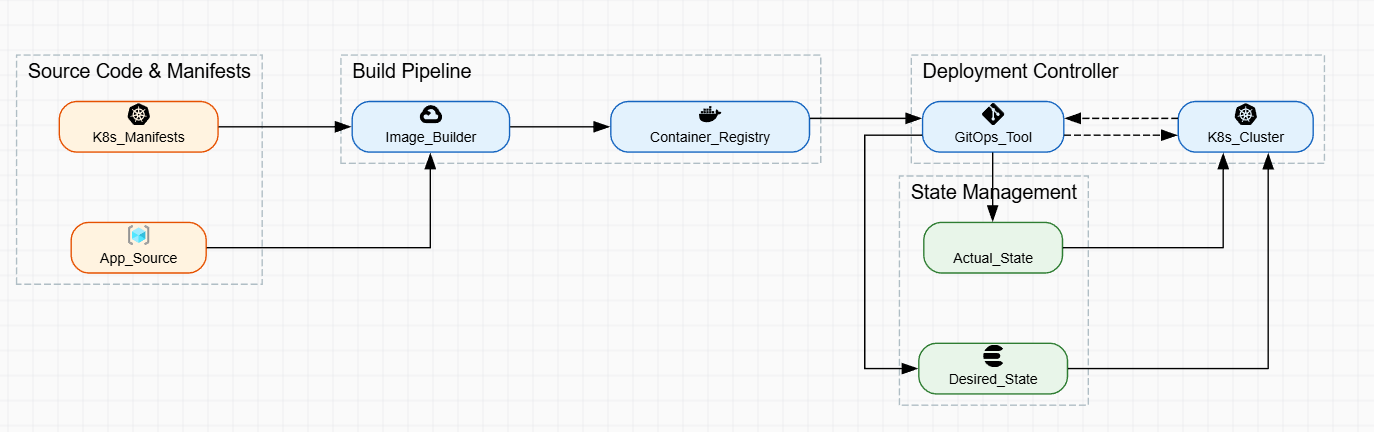

GitOps-Based Kubernetes Deployment
Application source code and Kubernetes manifests are stored in separate repositories. Developers push application code, triggering image builds and pushes to a container registry.
Gauri Yadav

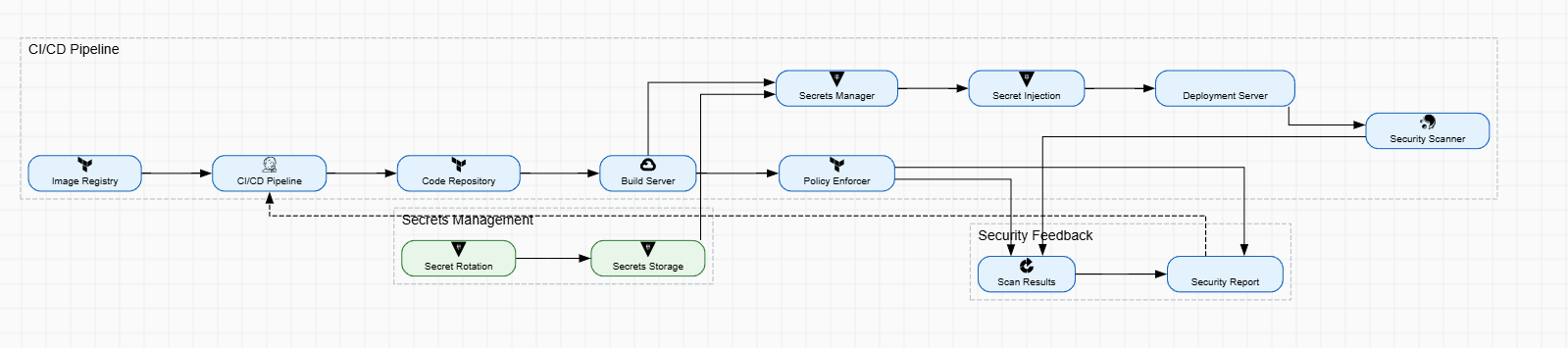

Secure CI/CD with Secrets Rotation and Policy Enforcement
CI/CD pipelines retrieve secrets dynamically from a secrets manager at runtime. Secrets rotate automatically without pipeline changes. Infrastructure policies enforce that builds fail if misconfigured resources are detected.
Gauri Yadav

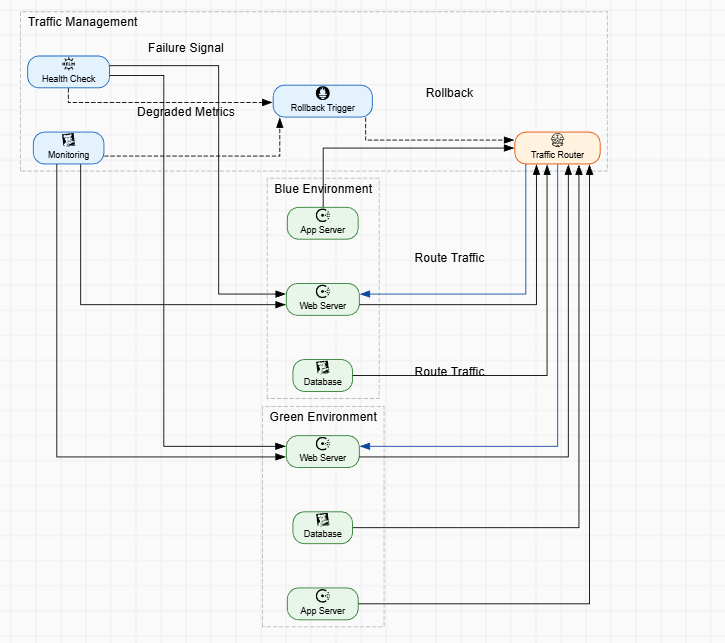

Blue-Green Deployment with Automated Rollback
Production environments maintain two identical stacks (blue and green). Traffic is routed to only one stack at a time. New releases deploy to the inactive stack and undergo automated health checks.
Gauri Yadav

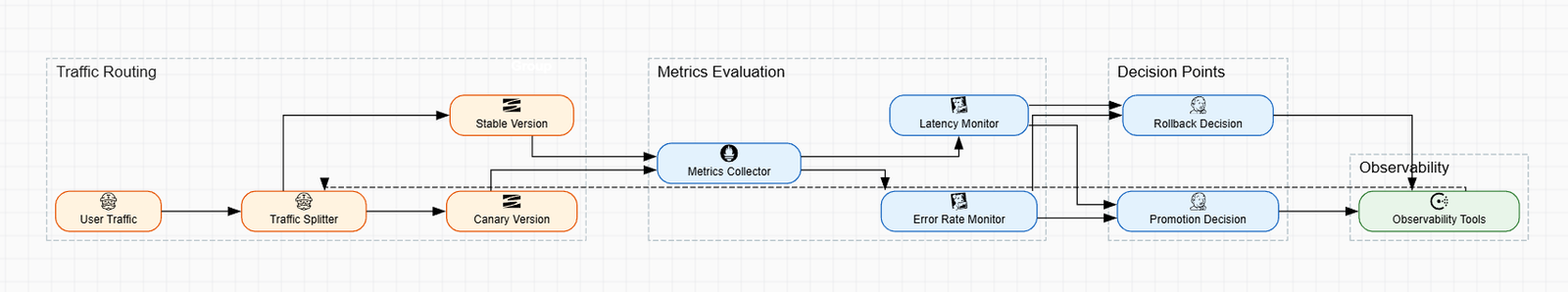

Canary Deployment with Progressive Traffic Shifting
A new application version is released to a small subset of users first. Traffic is gradually increased based on real-time metrics such as error rate and latency. Observability tools continuously evaluate release health.
Gauri Yadav

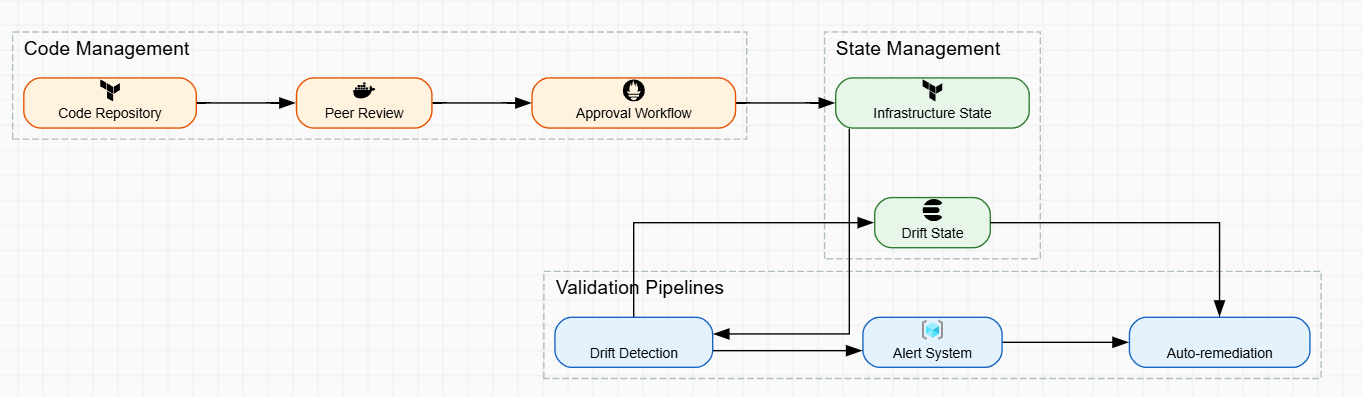

Infrastructure as Code with Drift Detection
All infrastructure is provisioned using Infrastructure as Code. Periodic validation pipelines detect drift between declared state and actual deployed resources. Drift triggers alerts and optional auto-remediation.
Gauri Yadav

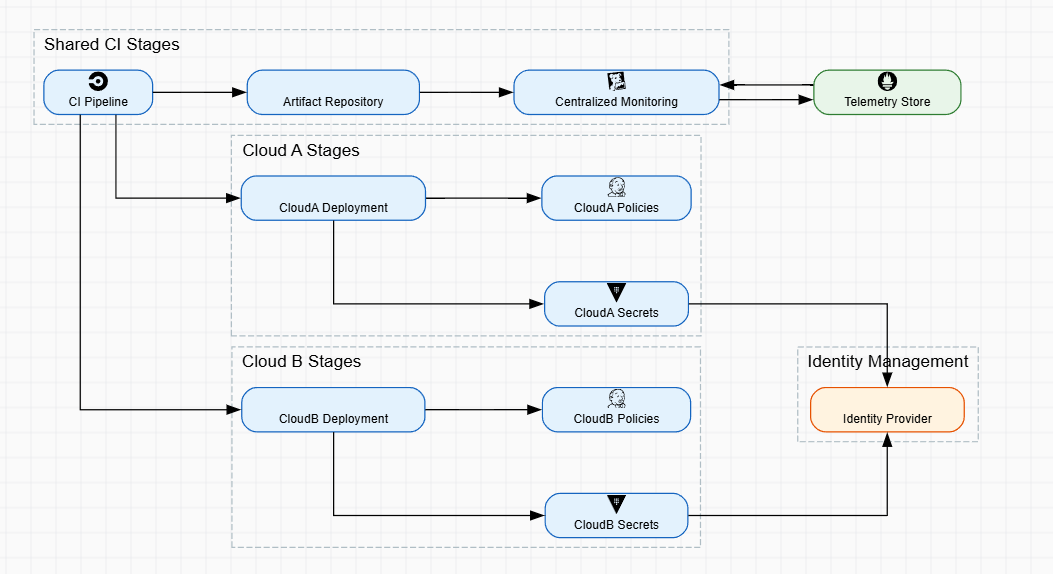

Multi-Cloud DevOps Pipeline
A single DevOps platform builds and deploys applications across multiple cloud providers. Shared CI stages build artifacts once, while cloud-specific stages handle deployment differences.
Gauri Yadav

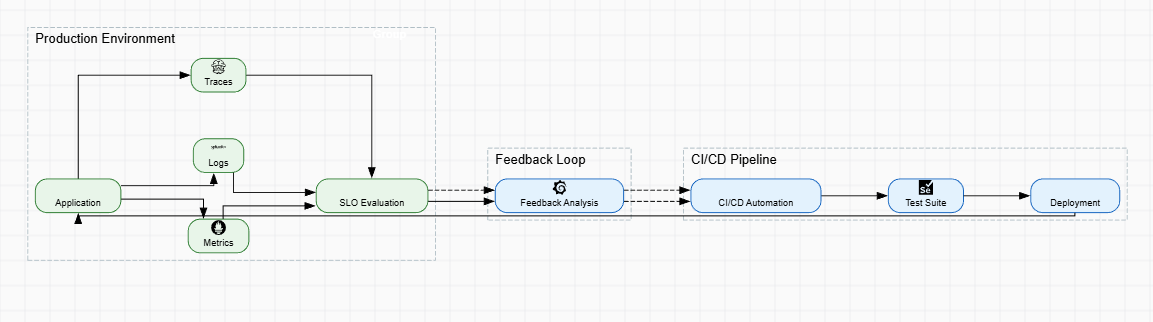

Observability-Driven Deployment Decisions
Deployments are gated not just by test success but by runtime observability signals. Metrics, logs, and traces are evaluated automatically after deployment. If predefined SLOs are violated, the pipeline halts or rolls back.
Gauri Yadav

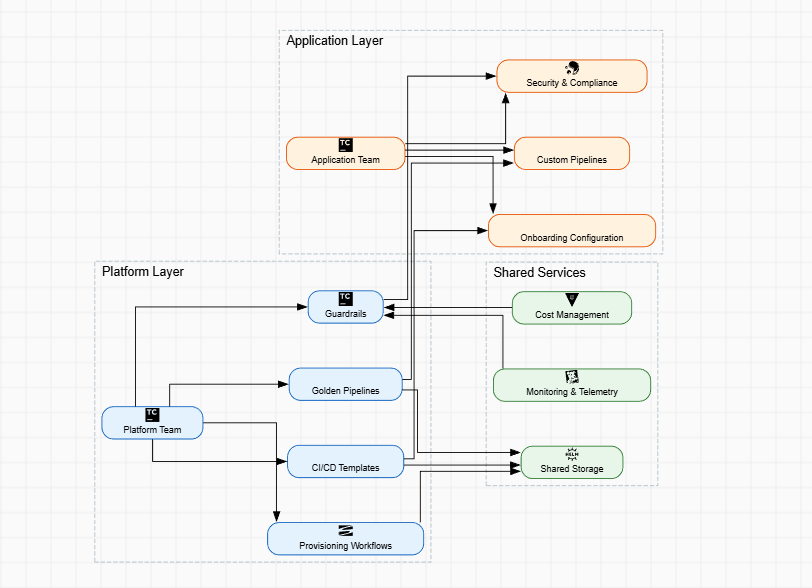

Self-Service Platform Engineering Model
A platform team provides reusable CI/CD templates, golden pipelines, and environment provisioning workflows. Application teams onboard by configuration, not custom pipelines. Guardrails enforce security, cost, and compliance automatically.
Gauri Yadav

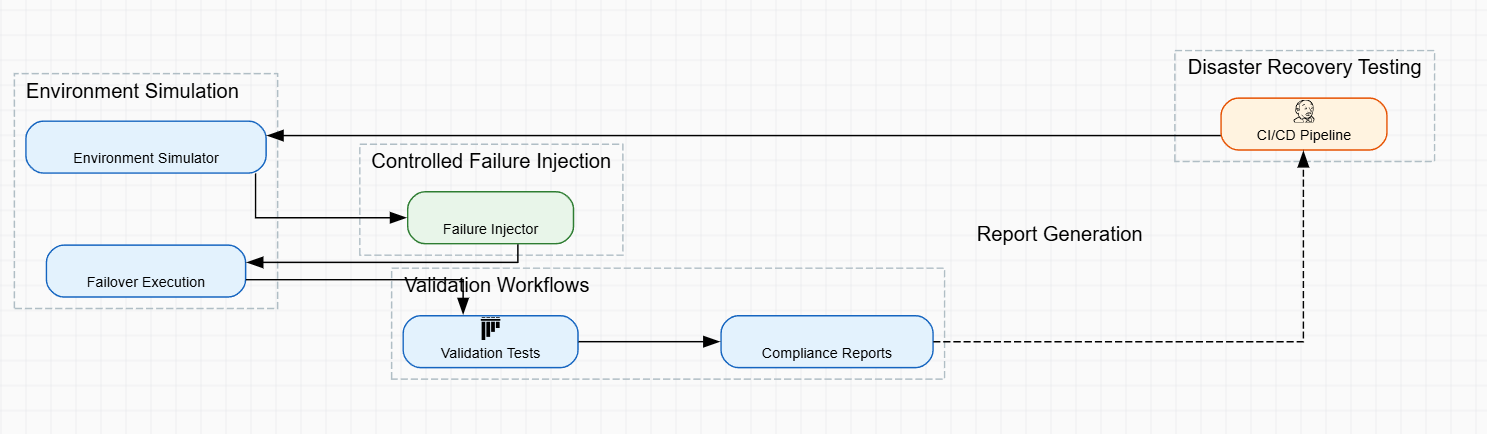

Disaster Recovery Testing via CI/CD Automation
Disaster recovery is tested regularly using automated pipelines. Environments are simulated, failover procedures executed, and validation tests run. Reports are generated automatically for compliance.
Gauri Yadav
